Library Configurations

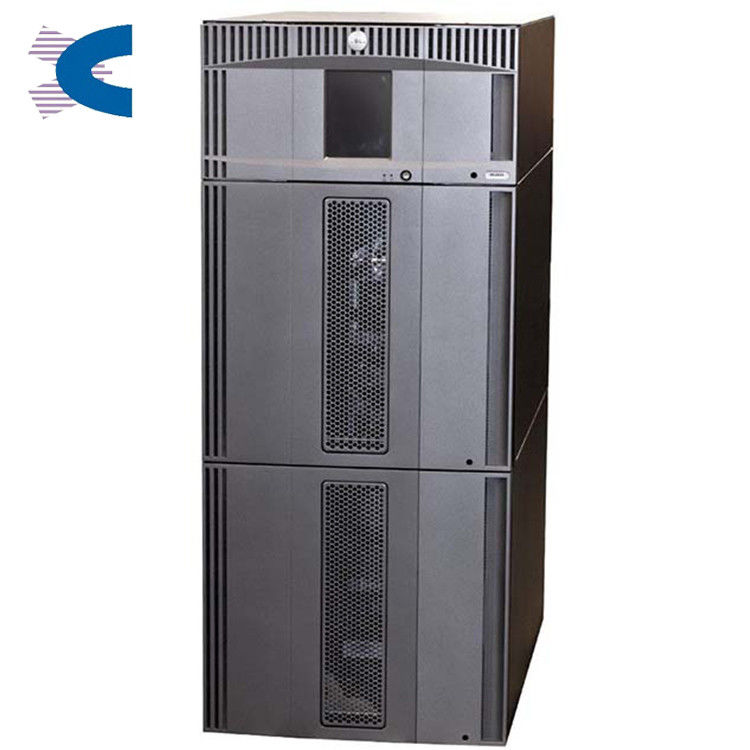

PowerVault ML6030 CM (23U)

Up to 225 cartridges

Up to 10 tape drives

Up to 30 import/export slots

Server Compatibility

Dell™ and x86 IBM legacy, Lenovo and HP servers

Tape Backup Technology

Automated tape library

41 to 409 cartridges (41U config)

1-18 LTO tape drives (41U config)

5U, 14U and 23U base configurations

9U expansion module

32U and 41U chassis sizes available for configuration

Encryption

Optional Library Managed Encryption (LTO4 and later generations)

Optional Advanced Reporting Available

Optional Features

Optional Capacity on Demand

Linear Tape File System (LTFS) support provides easy data access and management allowing easy file share;

LTFS-LE software is available for purchase

Barcode Reader

Standard

Operations

Configuration: Autodiscovery and auto calibration for installed/added components (modules, tapes, drives)

Environmental Operating Conditions

Electrical: 100-240V

Altitude: 10,000 ft (9,144m)

Temperature: 10°C to 40°C (operating)

Humidity: 20-80% non-condensing (operating)

Drive Controllers

8 Gb/s FC, 6 Gb/s SAS (LTO-6 and earlier generations only)

Software

Dell NetVault® Backup

For additional tape backup software support such as Symantec and CommVault, visit the software vendor site for up-to-date support information.

Chassis

PowerVault ML6030 CM (23U)

40.1" x 17.4" x 31.4" (101.9cm x 44.2cm x 79.8cm)

184 lbs (83.6 Kgs)

Regulatory

Product Safety, EMC and Environmental Datasheets

Dell Regulatory Compliance Home Page

Dell and the Environment
